AM200 Microscope Camera System

AM200 Microscope Camera System

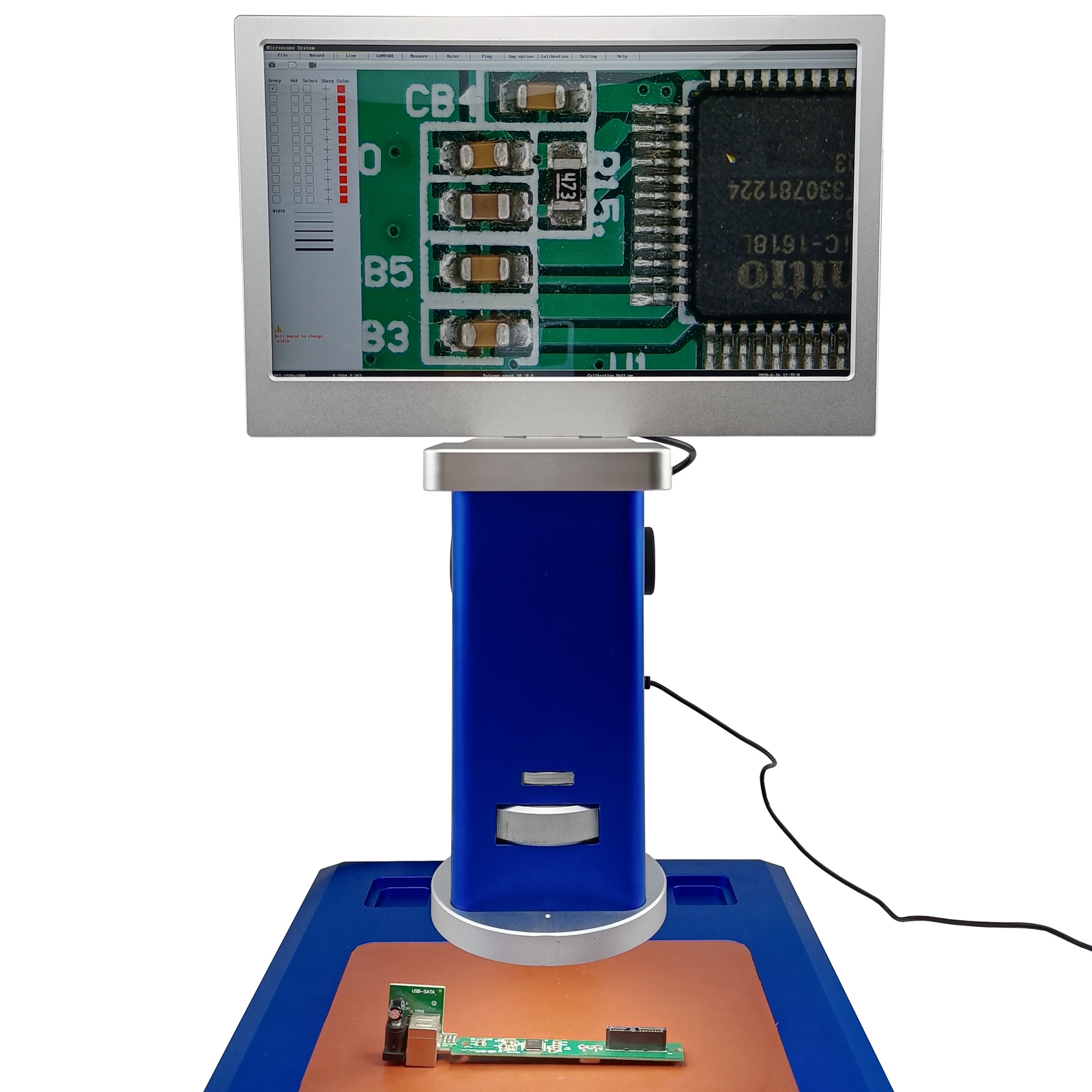

The AM200 is a ready-to-use video inspection system with built-in software, it uses 0.7X-4.5X zoom lens with ring light to display images on 13.3″ screen.

Features:

  • Designed for magnification viewing, measurement, 2MP photo taking, and 1080P video recording
  • Built-in software and controlled by mouse, it uses HDMI cable directly provides accurate video on the 13.3″ LCD display
  • Camera, lens, and ring light is integrated into the pillar for easy zoom and focus
  • Anti-skid pad is placed on working area to ensure object stability
  • The 0.7X-4.5X optical magnification range translates to 10X-120X on-screen magnification
  • Suitble for wide range of subjects including electronics, machined parts, workshops or production where require real-time magnification
  • Working distance from 5.5″(14cm) to 15.5″(40cm), offers plenty of room for handling objects while viewing
  • Tabletop stand, integrated pillar, and LCD frame is made by aluminum, anti-corrosion, and low working temperature

Specifications:

  • Model: AM200
  • Sensor Type: CMOS
  • Sensor Optical Format: 1/2.8″
  • Active Pixels: 2MP (1920 x 1080)
  • Video Output Resolution (HDMI): 1920 x 1080
  • Video Preview Framerate (HDMI): 60fps
  • Video Capture Resolution: 1080P60fps
  • Video Capture Format: AVI
  • Photo Capture Resolution: 1920 x 1080
  • Photo Capture Format: JPG
  • Storage Media: USB thumb drive, max 64GB
  • Software Menu: File, Record, Line, Compare, Measure, Ruler, Flag, Img option, Calibration, Setting, Help
  • Connectivity: HDMI, USB
  • Power: 12VDC 2A
  • Dimensions:
    • Base: 280 x 340 x 10mm (11.02 x 13.39 x 0.39 inch)
    • Pillar Height: 316mm (12.44 inch)
    • Monitor: 250 x 180 x 7mm (9.84 x 7.09 x 0.28 inch)
    • Screen Size: 13.3 inch
  • Total Weight: 6.4kg (14.11 lb)

Demo:
